4" PERIPHERAL SUBMERSIBLE PUMPS

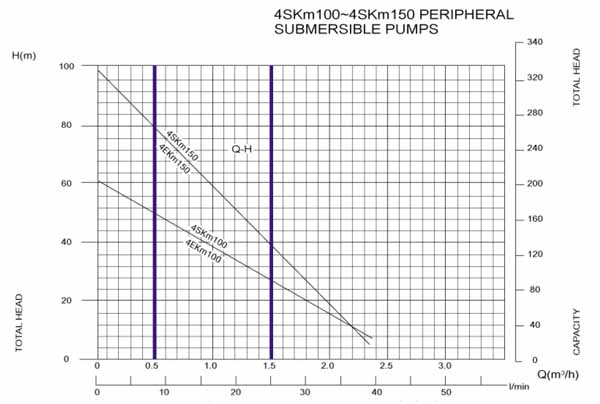

Type Power Capacity Weight    (Kg) Length   (mm)

m3/h 0 0.5 1 1.5 2 2.4

Hp L/min 0 8.3 16.6 25 33.3 40

4SKm 100 1 Head(m) 61 50 38 27 15 4 17 487

Head(ft) 200 164 125 88 51 13

4SKm 150 1.5 Head(m) 99 79 59 39 19 4 19 546

Head(ft) 320 258 192 127 62 13

Construction features
Shaft, jacket and hydraulics in stainless steel;
Brass impeller;
Built-in non-return valve;
Thermoplastic parts;
Oil-cooled motor with compensating diaphragm;
Graphite mechanical seal protected by sand proof ring;
4SKm 100 parts are non-toxic and non-polluting;
Due to special construction features, both installation and
maintenance of 4SKM 100 are fast and easy.

Main uses
For 4" wells;
Pumping clear water into: Detached houses-Country houses and faems-Cottages;
Moving water in fountains;
Rain irrigation;
Feeding pressure systems;
Filling and emptying tanks.
