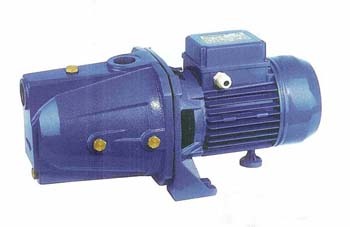

Garden Tools Power Sprayer Cleaning Machine
- Product Name:M80
- Model Number:M80
Product descriptions:
Operating limits:
1. Fluid temperature up to 60°C
2. Maximum ambient temperature 40°C
3. total suction upto 9 meter (continuous duty)
Motor:
1. Two-pole induction motor (2850rpm)
2. Insulation Class B
3. Protection IP44
Materials:
1. Pump body & support: cast iron
2. Motor housing: aluminum
3. Impeller: Brass
4. Ejector & Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless steel
6. Mechnical seal: Carbon/Ceramic
Application:
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications
For garden use and irrigation.
220v/50Hz, 230v/50Hz, 110v/60Hz & 115v/60Hz models are available on request.
| MODEL | POWER | INLET/ OUTLET | MAX.FLOW | MAX.HEAD | MAX.SUCT | GW | PACKING | QTY (20') |
| M60 | 0.6 HP | 1"×1" | 40 L/min | 35 m | 9 m | 13 | 450×215×235 | 1350 |
| M70 | 0.8 HP | 1"×1" | 50 L/min | 40 m | 9 m | 16.5 | 450×215×235 | 1350 |
| M80 | 1 HP | 1"×1" | 60 L/min | 45 m | 9 m | 17.5 | 450×215×235 | 1350 |
