Garden Tools Power Sprayer Cleaning Machine
- Product Name:HSDG-15C
- Model Number:HSDG-15C
BALLENA Power can provide a wide range of generators powered by China brand engine with three phase diesel generator (3KW ~ 100KW).
High Reliablity and Safety, Environmentally Friendly, Easy to Operate.
Main features of Genset Powered by China brand engine:
1. Service and parts are available from us or distributors in your location.
2. Coupled with good quality alternator
3. Base fuel tank for at least 8 hours running
4. HGM6110 control panel for normal type,HGM6120 for automatic type
5. 50℃ radiator
6. Rigorous test including 50% load,75% load,100% load and 110% load

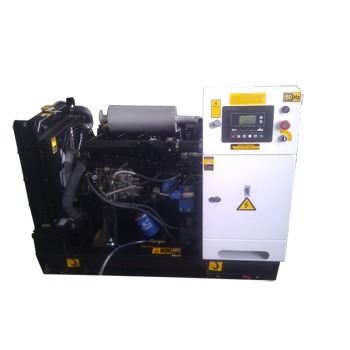

THREE PHASE (OPEN TYPE) DIESEL GENERATOR
| Gen-set Model | HSDG-15C | HSDG-30C |
| Rated Power | 15KW | 30KW |
| Frequency(Hz) | 50 | 50 |
| Voltage (V) | 230/400V | 230/400V |
| Power factor (∮) | 0.8 lag | 0.8 lag |
| Noisy level | 75dB at 7 meter | 75dB at 7 meter |
| Engine model | 4DW81-23D | 4DW92-39D |
| Maker | FAWDE | FAWDE |
| Prime Power | 17KW | 32KW |
| Cooling system | Water cooling | Water cooling |
| Speed RMP | 1500 | 1500 |
| Speed control | Mechanicial | Mechanicial |
| Bore and stroke (mm) | 85*95 | 102*118 |
| Cylinder no | 4 | 4 |
| Fuel consumption(g/kw.h) | ≤245 | ≤240 |
| Starting method | Electric starting with 12v battery | Electric starting with 12v battery |
| Alternator model | WHI164D | WHI184G |
| Type | SINGLE BEARING, BRUSHLESS, SELF EXCITATION,WITH AVR | SINGLE BEARING, BRUSHLESS, SELF EXCITATION,WITH AVR |
| Ambient temperature (℃) | -10 - 50 | -10 - 50 |
| Power KW/KVA | 12KW/15KVA | 25KW/30KVA |
| Power factor | 0.8 | 0.8 |
| Voltage | 230/400V | 230/400V |
| Frequency | 50 | 50 |
| Permissible temperature raise (℃) | 125 | 125 |
| Type of Isolation | H | H |
| Type of protection | IP23 | IP23 |
| Control panel AMF | 6110 | 6110 |
| Main characteristic | With protection device for: | |
| High water temperature, low oil pressure, over speeding, over crank, over/low voltage, over/low frequency, over load. | ||
| LCD display the parameters: | ||
| voltage, current, frequency, speed, running time, oil pressure, water temperature, oil temperature, battery voltage, power, power factor, | ||
| With self trouble shooting function. | ||
| Maker | SMART GEN | |
| Dimension | Gen set size open /silent | |
| Length (mm) | 1550 | 1550 |
| Width (mm) | 800 | 800 |
| Height(mm) | 1210 | 1210 |
| Weight(kg) | 540 | 610 |
MATERIALS SPECIFICATION:
1) Components: Diesel Engine, Alternator, Chassis, Clutch, Silencer, Storage Battery, battery cable, Kit, operation Manual, Battery etc
2) Diesel Engine ：FAWDE engine, Open Type &Fan/Water Cooled, direct injection, four stroke diesel engine
3) Alternator:Brushless alternator, single bearing, self excitation, with AVR, H Grade Isolation, with MCCB
4) Control panel: adopt SMARTGEN 6110 series control panel.
With the safety device for diesel engine: High water temperature, low oil pressure, over speed, over crank.
With safety device for alternator: over/low voltage, over/low voltage, over load
Self diagnostic capabilities simplify trouble shooting
LCD display: voltage, current, frequency, oil pressure, water temperature, power, power factor, engine speed, hour meter, battery voltage.
