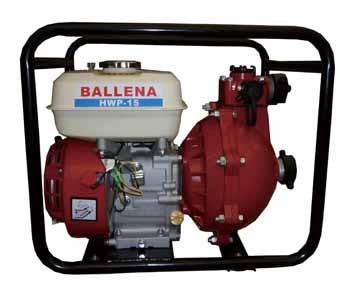

- Product Name:HWP-15
- Model Number:HWP-15
Product descriptions:
Multi-purpose, centrifugal self-priming 1.5" pump
Easy starting OHV commercial engine
Full frame protection and protected by oil alert.
Engine: GX200/6.5HP
Displacement: 208 cc
Bore and stroke: 70 x 45 mm
Compression Ratio: 8.5:1
Oil Alert: Std.
Pump type: Multi-purpose Centrifugal Self-priming
Volute: Construction plactic
Impeller: Construction plastic
Mechanical Seal: Carbon/Ceramic
Drive system: Direct
Discharge capacity: 18 m3/h.
Suction port diameter: 1.5"
Discharge port diameter : 1.5"
Total head lift : 60m.
Suction head lift: 8m
Dimensions (LxWxH): 50 x 37 x 44cm
Dry weight : 26 kg
