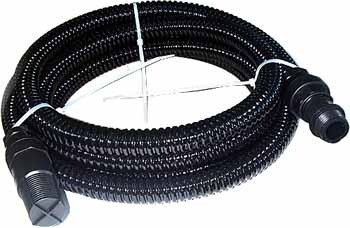

Product Name:Pump suction hose
Model Number:Pump suction hose

Product descriptions:

Characteristics:

This hose is plastic rib reinforced PVC material with features such as compression resistance, corrosion resistance and anti-bending etc. The inlet end installed a filter to filter the sand and mud. It is applicable to pumps used in industrial, agricultural, construction, irrigation etc.

Color and size can be customized.

Model	Inner Dia.	Outer Dia.	Working Pressure	Broken Pressure	Foot valve & Connector	Length	40' loading Quantity
PSH-1	22 mm	27.5 mm	0.4 MPa	2.0MPa	1"	4m/7m/10m	5064 (7m)
PSH-2	25 mm	32 mm	0.4 MPa	2.0MPa	1"	4m/7m/10m	4500 (7m)
